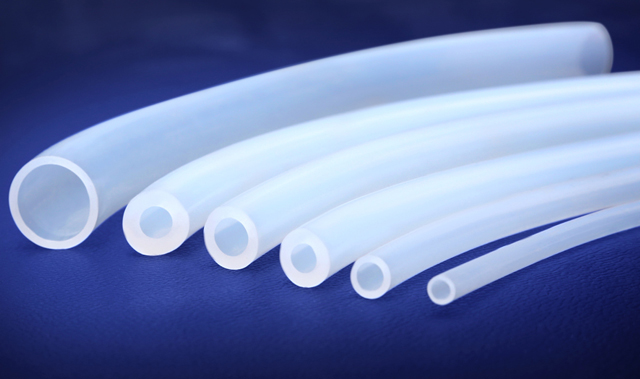

Silicone tubing has made significant strides in the medical device market over the last five years. From surgical instrumentation to implantable drug-delivery systems, silicone tubing is methodically replacing tubing made from more-traditional plastics and thermoplastics such as polytetrafluoroethylene (PTFE), polyetheretherketone (PEEK), and nonplastics such as urethanes. Medical device designers are drawn to silicone tubing for a variety of reasons, including biocompatibility and ease of manufacture relative to plastic. In addition, silicone often offers flexibility in design that does not sacrifice quality or durability. The migration from thermoplastic tubing to silicone tubing is occurring for several reasons. From a biocompatibility standpoint, silicone scores very well. This is primarily due to the following characteristics of the material: • Low toxicity. • Physiological inertness. • Low occurrence of leachables and extractables. • Hypoallergenicity. Silicone has been widely used in both implantable applications such as defibrillator and pacemaker lead covers and stents and non-implantable applications such as wound drainage. The material has also found various applications in biological sensors, prosthetics, and drug-delivery systems. It is possible that the long-term implantable product market has played a more significant role in the drive for silicone tubing than previously thought. Medical device manufacturers may look to differentiate their product from those of competitors by opting for silicone tubing instead of more traditionally used materials. Silicone tubing offers medical OEMs a growing selection of custom options. It can be provided in a variety of shapes and sizes, single or multiple lumens, ribbons, and combination materials. It is also available with balloon properties and variable cross sections that are not available in products in the plastic tubing market. Designers can also take advantage of its gas permeability properties. Another unique quality in the processing of silicone tubing is that unlike thermoplastic extrusion, water does not come into contact with silicone during any step of the extrusion process. (In the extrusion of thermoplastics, water is required to size and cool the product.) Water can potentially add pyrogen contaminants to the material, which can negatively affect the bio-compatibility properties of the tubing. Silicone Extrusion Silicone tubing is available in a wide durometer range (50–80 Shore A hardness), and its color characteristics can include clear, translucent, or opaque versions. In addition, radiopaque tubing in either a striped or solid form can be produced from silicone. The material can be continuously extruded to encompass a broad spectrum of sizes. For example, silicone can be extruded for very small diameters and tolerances (e.g., 0.01-in. outer diameter, ±0.0005 in.). Conversely, the material can be extruded to sizes exceeding 3 in. The tubing can also be tapered (bumped), a process in which the inner or outer diameter is stretched down to smaller diameters and then back up to original size. This is useful in applications in which the tubing may need to be more rigid or withstand higher pressures on one end of the tubing, or where a larger profile would facilitate insert molding operations. Some of these applications include peripherally inserted central (PIC) catheters and 7 FR double-D insert-molded tubing. Both inner and outer diameters can be adjusted by changing the shape or size of the tube on the fly, prior to curing. Extruders can accomplish this by moving the extrusion mandrel or changing the die shape. Designers sometimes desire a specific shape along the tube length. For example, peritoneal dialysis tubing may require a spiral shape to aid in device functionality. Because silicone is a heat-cured material, partially cured or uncured extruded profiles can be placed into forming trays or other specialized molds to help set a specified shape without altering physical properties or crucial dimensions. Expertise gained from working experience with silicone becomes pivotal in achieving desired results, through a combination of extruding, shaping, and curing techniques. Braiding and Reinforcement Silicone tubing carries a reputation for not being able to withstand extreme pressures as well as comparably sized thermoplastic tubing. However, a designer requiring a softer or more flexible tube that still has resistance to pressure can specify a reinforced version. Silicone extrusions can be embedded or reinforced by braiding or spiral winding with a variety of materials. Polyester and stainless steel are common supplemental materials. Braiding occurs as a secondary operation and provides kink resistance as well as an increased working pressure range. The reinforced silicone tube's inner layer is extruded (either hollow or over a core), braided or spiral wrapped, then reextruded with an additional layer of silicone, encapsulating all the components or layers. The process can be repeated for multiple layers. Due to advances in precision braiding equipment, very small stranded materials and steel wire or ribbon can add significant pressure resistance, kink resistance, and rigidity to small extruded shapes. Braiding requires a minimum inner tubing wall thickness and a minimum encapsulation thickness. Dimensional tolerances are typically larger due to stack-ups, which is a term used to describe the addition of different tolerances that must be considered in the production and functionality of each layer of the part. Core removal may also need to be considered to limit piece length. A Sampling of Applications for Silicone Tubing Silicone is versatile and has high dielectric strength. It can be electrically insulating or conductive, and manufacturers can harness these potential properties by controlling the additives used during compounding. Silicone is also semipermeable to certain materials, which is helpful in drug-eluting applications. It is gas permeable, a useful trait for devices used to grow cell cultures. Silicone multilumen tubing is used extensively in long-term applications such as cardiac rhythm management. Multilumen silicone tubing is the conduit for electrical leads and provides an insulated path for signals from the pacemaker or defibrillator. It has also found use in short-term applications such as urinary catheters and PIC catheters. Processing the Material Typically, extrusion outer diameters are round, but other shapes are possible through wire EDM technology. Interior lumens do not need to be round or balanced, although great care must be exercised to calculate the total stack-up of dimensioned tolerances. Most applications require strict attention to the wall thickness of each lumen, but the webbing and space between the lumens is often neglected. Frequently the lack of land area and eventual loss of total tolerance is not discovered until the tubing manufacturer reviews design specifications for design of the die and mandrel tooling. The Rubber Manufacturers Association's tolerance guidelines are a good starting reference, although precision silicone extrusion manufacturers typically hold significantly tighter specifications. Even though lumen location variations of a few thousandths of an inch may be inconsequential to the functioning of the part, such details are crucial to both tooling design and the process for the extruder and, by extension, for the designer. Radiopaque stripes are required for many tubing applications that require radiographic (x-ray) confirmation of placement within the body. These stripes can be coextruded into the tube wall (either embedded or surface location) with precision, allowing lumen geometry and placement to take precedence. Lumens used for single-lumen or multilumen tubing may be lined with wire, PTFE, PEEK, or other tubing. Another characteristic of silicone tubing is its ability to separate multilumen tubing for multifunctional applications. This strippable tubing is achieved by including a thin web (e.g., 0.007 × 0.010 in.) between discrete tubes. Multilumen tubing, with certain design restrictions, can transition to fewer lumens or change lumen size and location within the same tube. This has multiple uses in the wound-drainage market, for example. Silicone extrusions are ideal for prototype development—not only because they allow for easy feasibility testing but also because start-up costs are manageable. Silicone is a thermoset material that is extruded cold and heat cured. The process allows the extrusion operator to make quick setup and die and mandrel adjustments without the high-temperature hazards inherent with thermoplastics. Silicone extrusion also avoids problems with moisture, pellet mixing and melting, and scorch that challenge plastic operations—resulting in potentially fewer process variables. Identifying and controlling process variables is critical to precise extrusion operations. Silicone processes, whether molding, extrusion, or sheeting, require accurate, stable, and repeatable processes and equipment that minimize variation. Examples of variables are screw speed, infrared oven temperature, die pressure, pot life of catalyzed material, etc. The goal is to minimize such variations because they affect the final dimensions, yield, and the designer's satisfaction with both product performance and cost. Limitations Although characteristics such as inertness and ease of manufacture make this product attractive, silicone does have some limitations, including lower tear strength when compared with its urethane counterparts. It also has a lower burst pressure in an unreinforced state. Silicone tubing also has limitations with respect to the type of fluid that is passing through it. It is not recommended for use with concentrated acids or bases, organic solvents, or oils. However, silicone compounders are working on improved silicone chemistry to enhance its appeal to OEMs. Establishing Partnerships When choosing an extrusion provider, medical OEMs should seek out the following capabilities: • Extrusion tooling design expertise. • Engineering support. • Engineers and operators with an extensive silicone extrusion background. Extrusion R& D capabilities that provide short turnaround times should be a top priority, especially when determining the feasibility of several designs. Selecting fabricators that have good relationships with raw silicone material suppliers, as well as those possessing a thorough understanding of available silicone compounds, is key. Partnerships should be formed with companies that are willing to invest in the latest technology and test and develop new processes. Conclusion The market for silicone tubing seems ripe for growth due to its use for wound-drainage devices, catheters, and other easily sterilized disposable products. Silicone enables the creation of products that can be provided in a multitude of designs, shapes, and hardnesses. The ability of silicone tubing to meet current and emerging demands and help forge new ideas depends heavily on the medical OEM's ability to receive consistent, high-quality product. When that happens, OEMs can focus on the more difficult functional aspects of their devices and trust the product designer to understand and apply silicone extrusion processes. Both the superior product and the designer's thorough understanding can be achieved through a partnership, with good communication, between the silicone raw material supplier, extrusion specialist, and the device designer. 0.3mm silicone tubing 1 2 silicone tubing home brewing 1 inch silicone tubing 1 mm silicone tubing 1 od silicone tubing 1/16 silicone tubing 1/2 id silicone tubing 1/2 od silicone tubing 1/2 silicone tubing 1/32 silicone tubing 1/4 clear silicone tubing 1/4 od silicone tubing 1/4 silicone tubing 1/4 silicone tubing home depot 1/8 id silicone tubing 1/8 od silicone tubing 2 id silicone tubing 2 inch silicone tubing 2 mm od silicone tubing 2 mm silicone tubing 2 silicone tubing 3 8 silicone tubing home depot 3 mm id silicone tubing 3 mm silicone tubing 3/16 inch silicone tubing 3/16 od silicone tubing 3/32 silicone tubing 3/4 reinforced silicone tubing 3/4 silicone tubing 3/8 od silicone tubing 3/8 silicone tubing 3/8 silicone vacuum tubing 4 inch silicone tubing 4 mm id silicone tubing 4 silicone tubing 40mm silicone tubing 4mm silicone tubing 5 mm silicone tubing 5/16 id silicone tubing 5/16 inch silicone tubing 5/16 od silicone tubing 5/16 silicone tubing 5/32 id silicone tubing 5/32 silicone tubing 5/8 id silicone tubing 5/8 inch silicone tubing 5/8 silicone tubing 6 silicone tubing 6mm silicone tubing 7/16 id silicone tubing 7/16 silicone tubing 7/32 id silicone tubing 7mm silicone tubing 8mm silicone tubing 9/16 id silicone tubing 9/16 silicone tubing arizer extreme q silicone tubing buy silicone tubing uk extreme q silicone tubing flying c silicone tubing food grade silicone tubing 5 mm food grade silicone tubing 5/16 id food grade silicone tubing nz jebco silicone tubing jehbco silicone tubing jual silicone tubing latex vs silicone tubing masterflex silicone tubing l/s 16 med-x silicone tubing nalgene silicone tubing norprene vs silicone tubing polyurethane vs silicone tubing qosina silicone tubing reinforced silicone tubing 3/4 id silicone electrical tubing silicone exhaust tubing silicone gel tubing silicone med-x tubing silicone oxygen tubing silicone rig tubing silicone rubber tubing silicone rubber tubing home depot silicone rubber tubing suppliers silicone rubber tubing uk silicone tubing silicone tubing 0.5mm silicone tubing 0.5mm id silicone tubing 1 id silicone tubing 1 inch silicone tubing 1 mm id silicone tubing 1/2 id silicone tubing 1/2id 3/4od silicone tubing 1/32 id silicone tubing 1/4 id silicone tubing 1/4 id 3/8 od silicone tubing 1/4 od silicone tubing 1/8 id silicone tubing 10mm silicone tubing 12mm id silicone tubing 2 mm silicone tubing 20mm silicone tubing 24 silicone tubing 25 silicone tubing 25mm silicone tubing 2mm id silicone tubing 3 mm od silicone tubing 3/16 id silicone tubing 3/32 silicone tubing 3/4 id silicone tubing 3/8 id silicone tubing 3/8 x 5/8 silicone tubing 3mm id silicone tubing 4mm od silicone tubing 5 mm silicone tubing 5/16 id silicone tubing 5/32 silicone tubing 5/8 silicone tubing 5/8 id silicone tubing 5mm id silicone tubing 5mm od silicone tubing 6mm silicone tubing 6mm id silicone tubing 8mm silicone tubing 8mm id silicone tubing ace hardware silicone tubing alcohol resistance silicone tubing amazon silicone tubing aquarium silicone tubing arizer extreme q silicone tubing auckland silicone tubing australia silicone tubing autoclavable silicone tubing automotive silicone tubing autozone silicone tubing b& q silicone tubing beer line silicone tubing bend radius silicone tubing bioreactor silicone tubing black silicone tubing brewing silicone tubing brisbane silicone tubing bunnings silicone tubing burst pressure silicone tubing by the foot silicone tubing calgary silicone tubing canada silicone tubing canadian tire silicone tubing cape town silicone tubing chemical resistance silicone tubing clamp silicone tubing clark rubber silicone tubing composition silicone tubing connectors silicone tubing cutter silicone tubing data sheet silicone tubing definition silicone tubing density silicone tubing denver silicone tubing dimensions silicone tubing dmso compatibility silicone tubing dow corning silicone tubing dublin silicone tubing durban silicone tubing durometer silicone tubing ebay silicone tubing edmonton silicone tubing ethanol silicone tubing expander silicone tubing extractables silicone tubing extreme q silicone tubing extrusion silicone tubing extrusion process silicone tubing food grade silicone tubing for brewing silicone tubing for co2 silicone tubing for fishing silicone tubing for fuel silicone tubing for ozone generator silicone tubing for peristaltic pump silicone tubing for r hop silicone tubing for sale silicone tubing for vaporizer silicone tubing for water cooling silicone tubing gas permeability silicone tubing gasket silicone tubing gasoline silicone tubing gauteng silicone tubing gecko optical silicone tubing germany silicone tubing glue silicone tubing grainger silicone tubing gray silicone tubing halfords silicone tubing hardness silicone tubing heat resistant silicone tubing heat transfer silicone tubing high temperature silicone tubing home depot silicone tubing home depot canada silicone tubing homebrew silicone tubing hs code silicone tubing hydrochloric acid silicone tubing images silicone tubing in singapore silicone tubing india silicone tubing insulation silicone tubing intake silicone tubing ireland silicone tubing japan silicone tubing jewelry silicone tubing johannesburg silicone tubing korda silicone tubing laboratory silicone tubing large diameter silicone tubing leachables silicone tubing leaching silicone tubing liquid nitrogen silicone tubing locally silicone tubing london silicone tubing lowes silicone tubing malaysia silicone tubing manufacturers silicone tubing manufacturers uk silicone tubing manufacturers usa silicone tubing mcmaster carr silicone tubing medical silicone tubing melbourne silicone tubing melting point silicone tubing menards silicone tubing msds silicone tubing mumbai silicone tubing near me silicone tubing new age silicone tubing new zealand silicone tubing newcastle silicone tubing next day delivery silicone tubing nottingham silicone tubing nyc silicone tubing nz silicone tubing oil resistant silicone tubing online silicone tubing ontario silicone tubing ottawa silicone tubing outgassing silicone tubing oxygen permeability silicone tubing ozone silicone tubing ozone safe silicone tubing peristaltic pump silicone tubing perth silicone tubing petrol silicone tubing petsmart silicone tubing philippines silicone tubing pressure rating silicone tubing pretoria silicone tubing price silicone tubing properties silicone tubing psi silicone tubing recycling silicone tubing red silicone tubing reef silicone tubing resistance silicone tubing roughness silicone tubing screwfix silicone tubing seattle silicone tubing shelf life silicone tubing singapore silicone tubing size 204 silicone tubing size chart silicone tubing small diameter silicone tubing stretch silicone tubing suppliers silicone tubing suppliers melbourne silicone tubing suppliers south africa silicone tubing suppliers uk silicone tubing taiwan silicone tubing tariff code silicone tubing temperature silicone tubing temperature range silicone tubing thermal conductivity silicone tubing thick wall silicone tubing thin wall silicone tubing toronto silicone tubing turbo silicone tubing types silicone tubing uk silicone tubing usa silicone tubing uses silicone tubing uv resistance silicone tubing vacuum silicone tubing valve silicone tubing vancouver silicone tubing vaporizer silicone tubing victoria silicone tubing victoria bc silicone tubing vs pvc silicone tubing vs vinyl tubing silicone tubing vwr silicone tubing walmart silicone tubing water cooling silicone tubing watson marlow silicone tubing welder silicone tubing welding silicone tubing where to buy silicone tubing wholesale silicone tubing winnipeg silicone tubing working pressure silicone tubing wort chiller silicone tubing za silicone vape tubing soft silicone tubing uk spt-60 l silicone tubing teflon vs silicone tubing thermoplastic vs silicone tubing tygon sanitary silicone tubing 3350 tygon vs silicone tubing vinyl vs silicone tubing yellow silicone tubing zeus silicone tubing
