Silicone Rubber Gaskets Polysiloxane (VMQ)
Himsan Polymer is a recognized leading manufacturer of high quality silicone rubber gaskets, seals, and custom silicone products. Our company’s reputation for excellence has been built on our ability to provide our valued customers with the most effective designing, engineering and manufacturing solutions to meet their most demanding applications. Our main objective is to continuously exceed our customer’s expectations by providing them with high performance gaskets and sealing products, competitive pricing, on-time delivery and exceptional customer service. Himsan Polymer maintains a modern manufacturing facility along with knowledgeable, technically-oriented professionals enabling us to consistently meet all of your blueprint specifications and tolerance requirements.
Silicone rubber is a high-performance elastomer with exceptional resistance to temperature extremes. Silicone molded and die cut gaskets remain functional within a temperature range of -67°F to +400°F, intermittent to +450°F. The low temperature flexibility of silicone is unmatched by any other elastomer. Silicone gaskets are often chosen due to their excellent resistance to chemicals, water, fire, fungal growth, ozone, heat and aging. Silicone has outstanding tensile strength, elongation, tear strength, and compression set. The versatility and long service life of silicone make it ideal for a wide variety of applications.
Molded Silicone Gaskets
Himsan Polymer specializes in the manufacturing of molded silicone gaskets and seals. We commonly mold products using silicone, fluorosilicone, and FDA (food grade) silicone compounds which are available in color options red/orange, black, gray, blue, white, and translucent with custom color compounding available upon request. Silicone rubber molding compounds durometer (hardness) typically ranges from 25 to 80 durometer, Shore A. Silicone rubber molding tolerances are compliant with rubber molding industry standard RMA A2 Precision tolerances.
FDA (Food Grade) Silicone Gaskets and Seals
Himsan Polymer produces precision die cut and molded FDA (Food Grade) silicone rubber gaskets and seals. Our FDA approved silicone products are fabricated to meet all of your blueprint specifications and tolerance requirements in order to suit your particular application. All food grade silicone products we manufacture are FDA compliant and provide reliable service at temperatures ranging from -175°F to 482°F. Food Grade (FDA) silicone is odorless, tasteless, peroxide-free, and fungus resistant making it ideal in applications where food is present.
Fluorosilicone Gaskets and Seals (FVMQ)
Himsan Polymer produces precision die cut and molded fluorosilicone rubber gaskets and seals. Similar to silicone, fluorosilicone (fluorinated silicone rubber) is intended for applications where there is contact with petroleum-based chemicals. However fluorosilicone can withstand more extreme temperatures and has superior chemical resistance properties to fuels, coolants and oils than standard silicone.

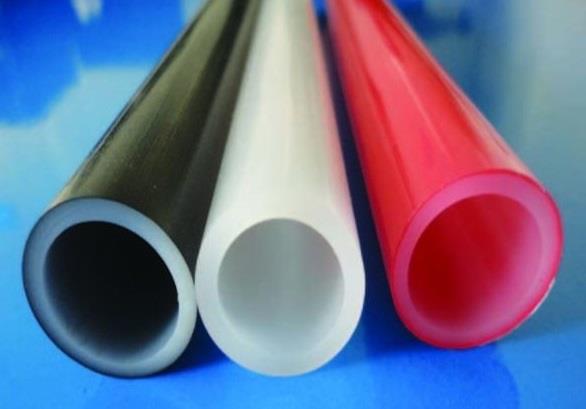

Silicone Transparent Tubings
Silicone Colored Tubings
Platinum Cure Silicone V/S Peroxide Cure Silicone
Platinum Cure Silicone
Ø Platinum cure silicones will have better tensile strength and elongation properties than peroxide cure silicones.
Ø The platinum compound would require a much shorter cycle time.
Ø Compression set values of 30-40 per cent directly from the mold are common in platinum compounds, a brief post-cure cycle can usually improve this to 20-25 per cent.
Ø Platinum Cured Silicone tubing offers many benefits over traditional peroxide cured tubing.
Ø Platinum Tubing offers extremely high purity and very low leaching of bi-products. Due to the platinum catalyst curing system the crosslink density of the silicone polymer is altered which in turn offers enhanced physical properties along with ultra smooth surfaces, particularly useful in the bioprocess industry sector where reduced bacterial growth is an added benefit.
Ø Platinum addition silicone tubing contains no phthalate plasticizers associated with other types of tubing and is manufactured totally free from animal derived components.
Ø Altimed Silicone Rubber Tubing is biocompatible to the ISO 10993 standard and meets fully USP Class VI, FDA, NSF and European Pharmacopoeia criteria.
Platinum addition cured silicone offer the following benefits over peroxide cured materials:-
1) Predictable pump life
2) None yellowing
3) Free from cross linker by-products
4) Free from PCB’s (Poly Chlorinated Biphenyls)
5) Very tight surface cure
6) No impairment of odour or taste
7) Dry and non-sticky surface finish
8) Slightly greater clarity
9) Smoother surface and lower level of protein binding
10) Preferred by pharmaceutical and biotechnology industries
11) Fewer potential leachables
12) Better Transparency
13) Non reactive to body tissue and fluid
14) Non adherence to tissue
15) Unaffected by most water soluble materials
16) Sterilisable by steam, dry heat, ethylene oxide and gamma radiation
17) Resists oxidation, ozone and radiation
18) Indefinite shelf life
19) Does not support bacterial growth
1) Shorter tubing life
Peroxide Cure Silicone
Ø Organic peroxides are commonly used with silicone rubber, such as 2,5 dimethyl- 2.5 di(t-butylperoxy) hexane, 2,4 dichloro-benzoyl peroxide, or dicumyl peroxide.
Ø The polymer may be methyl- or vinyl-based. Peroxide-initiated cure is classified as a "second order" reaction, and has three steps
- When the elastomer is placed in the heated mold, the peroxide thermally decomposes to form free radicals;
- These free radicals attack either a methyl or vinyl group, depending on the specific polymer and peroxide used, to form active cross-link sites.
- The active sites on the silicone polymer then combine, forming a carbon-carbon bond.
Ø peroxide cure silicones usually have better compression set properties for gaskets requiring critical long term sealing at extended temperatures
Ø Peroxide Tubing is used extensively within the medical device market. Its combined strength and biocompatibility make it ideal for pumping applications where a long lifespan is required.
a. Peristaltic Pump Tubing
b. Partial and full contrast radio opaque tubing for x-ray detection
c. Multi-lumen tubing and co-extruded tubing
d. Restricted & Unrestricted Implantable materials
e. Coloured Silicone Tubing using FDA approved pigments
f. Greater physical compression capability
h. Longer Tubing life
- Potential outgassing of peroxide products,in this if it not properly cured, or over long periods of time, outgassing of peroxides and ketones may occur. The major symptom of outgassing is blooming, or a fine white crystalline powder forming on the inside of the tubing.
- Silicone sheets without a post-cure will often have a sweet, distinctive odor – which may be dichlorobenzoyl peroxide.

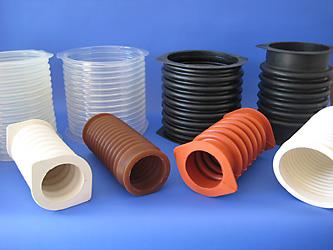

Silicone Corrugated Sleeves (Bellows)
Silicone Bellows ( Molded flexible connectors ) designed for loss-in-weight systems.Choose from two silicone compounds.
Translucent silicone which is FDA-acceptable per CFR 177.2600.
Black silicone which is static-conductive.
Both offer low axial and lateral force and flexible stretch for easy installation.
Temperatures from -40° to 250° C
Air and dust tight

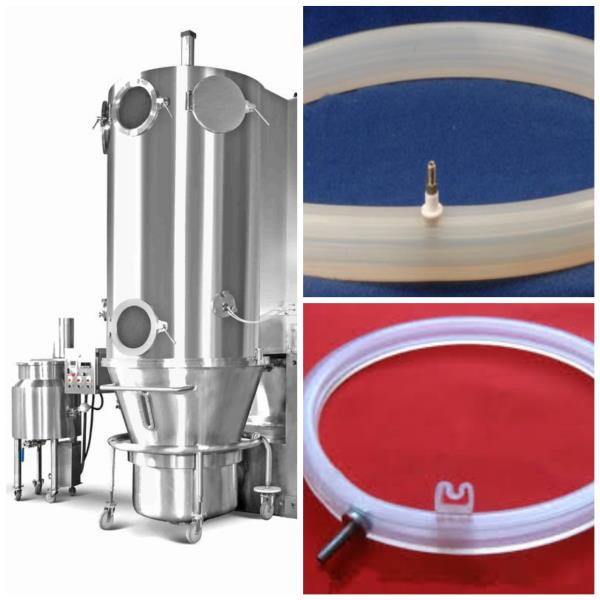

Fluidized Bed Dryers
The Fluidized Bed Dryers are known for single stage operation and extensively used to convert solutions, suspensions, and slurries into dry powder within a few seconds without any intermediate handling. The high speed of the process and controlled temperature ensure the optimum efficiency of the process.
The Fluidized Bed Dryers or Fluid Bed Dryers (FBD) are primarily used in almost all chemical, pharmaceutical, food, dyestuff and other process industries to dry materials by fluidization with hot and / or dehumidified air, which creates a turbulence in the wet product (not totally liquid) while flowing through it.
The atmospheric air is sucked in the dryer through 5/10 micron filter by efficient dynamically balanced fan driven by an electric motor. The clean air then passes over the electric heaters / steam or radiator provided with controller. The hot air passes through the product and fluidization dries the product. Dryer is provided with dehumidifier (Chilled water system) at the inlet so as to dry the product at low temperature under fluidized condition. The blower speed is controlled by AC frequency drive so as to control the fluidization avoiding choking of the filter bag. A raking system is provided to avoid lump formation in the container to achieve uniform fluidization and uniform drying.
The drying time depends on various factors such as physical properties of material, moisture content, type of moisture (free or inherent or water of crystallization), drying temperature etc. For example, the crystalline product can be dried faster than amorphous product containing same percentage of moisture at same temperature.
- Machine and the trolley are scientifically constructed. The lifting jack is housed in the inlet lower chamber (part of the main shell). It is of Stainless Steel and is lined with neoprene grade rubber of suitable hardness for sealing with the product container.
- The lifting jack is fitted with a pneumatic lifting device, which consists of 2 numbers pneumatic cylinders along with control valves, pressure regulating device and air filter. Air pressure requirement is 4 kg/cm2.
- The expansion chamber has a guide for positioning the product container.
- The filter bag chamber is made from Stainless Steel sheets. The filter bag can be de-dusted manually or pneumatically.
- The air inside is circulated by the blower. It has an impeller with a backward curve type blade. The impeller is driven by Flame Proof or Non Flame Proof Motor.
- The dryer is Electrical/Steam Heated as desired. Heaters are of finned tubes tested to 6 kg/cm2 pressure.
FBD Machinery Manufacturers:-
Glatt Systems Pvt Ltd
ACG Pharma Technologies
Alliance Engineering Company
Gea process engineering
Solace engineers mktg pvt ltd
Tapasya Engineering Pvt. Ltd
SSPM Systems & Engineers
Prism Pharma Machinery
Precikot pharma pvt ltd ( Kothari pharma technologies)
Chamunda pharma machinery
Bectochem Consultants & Engineers Pvt. Ltd.
Chitra Machineries Pvt. Ltd
The Bombay Engineering Works
Umang Pharmatech Pvt. Ltd.
Shakti Pharmatech Pvt. Ltd
Anchor Mark Machine
Kevin process technology
Anish Pharma Equipment Pvt Ltd
Saral engineering company
Shree Pharma Engineering Works
Sams technomech private limited
Himsan Polymer is the leading manufactures of Spares (Rubber Parts) and Silicone rubber inflatable gaskets.

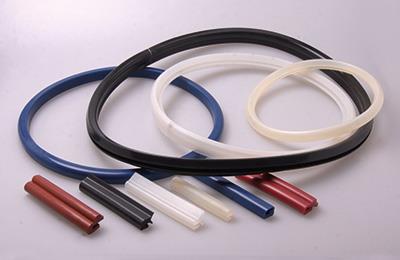

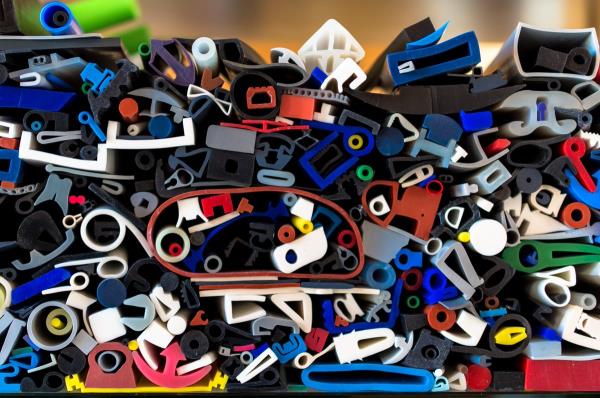

Silicone Gaskets, Rings, Profiles & Seals
Any silicone gasket manufactured by Himsan Polymer is guaranteed by our promise of delivering high performance silicone gaskets on-budget and on-time with unbeatable customer service. Our engineering department will work with your provided blueprint or will reverse engineer your sample part to your exact specifications and tolerance requirements.
FDA Grade Silicone Gasket
Translucent Grade Silicone Gasket
Fiberglass Reinforced Silicone Gasket
Medical Grade Silicone Rubber Gasket
Electrically Conductive Silicone Rubber Gasket
Low Temperature Gasket
High Temperature Gasket
Typically heat resistant and rubber-like, Silicone rubber gaskets are used in a variety of industries including:
- Electrical (insulators)
- Aerospace (seals)
- Office Machines (keyboards)
- Surgical & Food Processing (application requiring high bio-compatibility)
What is a silicone rubber gasket?
Silicone rubber gaskets are high-performance mechanical seals with an extraordinary resistance to extreme temperatures. Silicone gaskets are used to prevent leaks between different substrate sections in a wide range of applications.
Silicone rubber gaskets have an excellent temperature resistance in both hot and cold environments. They also have exceptional UV and ozone properties which makes them suitable for outdoor applications. Being an inert material, silicone generally does not react to the majority of chemicals, which means that it is popular for use in medical and industrial applications.
At Himsan Polymer, we have the facilities to manufacture standard gasket and washer sizes, as well as bespoke parts in-house, each of which are produced from the highest quality silicone gasket material.
One of the many extraordinary properties of gaskets in silicone material is that they are extremely resilient and can uphold a lot of their properties at very high and low temperatures. The low temperature properties of a silicone gasket are unmatched by any other elastomer.
In fact, our silicone rubber gaskets can remain flexible at temperatures between -100°C to +230°C. This makes our gasket material the ideal material for applications exposed to such extreme temperatures.
Here at Himsan Polymer, we specialize in providing you with top quality products. We supply a range of punched, cut, extruded, sheet and fabricated silicone rubber gaskets.
PTFE Filled Silicone Tubes
This special grade tube enables reliable peristaltic pump operation in critical pharmaceutical and biopharmaceutical processing applications. The unique composite structure of the tube adds strength and high flex durability for greater security against rupture under challenging conditions, up to 100 psig. Additionally, this highly resilient
